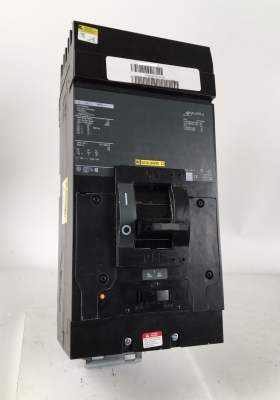

LA36400

Square D

LA36400

Guaranteed New In Stock
Refurbished In Stock
  • Estimated Rates for LA36400
  • Ground (Under 5 lbs) $2.95
  • 3-Day by Thu: 3rd $15.95
  • 2-Day by Wed: 2nd $39.95
  • Next Day by Tue: 1st $64.99
  • Next Day Early AM by Tue: 1st 10:00 am $119.95
Same Day Shipping
Ask about same day delivery
We Ship Internationally
We Ship From
Regional Locations

Product Details

Catalog Number:
LA36400
Manufacturer:
Square D
Connection:
I-Line Style Plug-in
Amperage:
400
Poles:
3
Voltage:
600
Full Description:
MOLDED CASE, THERMAL MAGNETIC; L FRAME; 240 VAC AT 50/60 HZ, 480 VAC STAR/277 VAC AT 50/60 HZ, 480 VAC AT 50/60 HZ, 600 VAC STAR/347 VAC AT 50/60 HZ, 600 VAC AT 50/60 HZ (UL/CSA/NOM); 240/415 VAC AT 50/60 HZ (IEC); 250 VDC; 400 AMPERE AT 40 DEG C; 3 POLE
Additional Details:
Commodity Description
Circuit Breakers - Industrial Circuit Breakers
Type
MOLDED CASE, THERMAL MAGNETIC
Current Rating
400 AMPERE AT 40 DEG C
Interrupting Rating
42 KILOAMPERE AT 240 VAC, 30 KILOAMPERE AT 480 VAC STAR/277 VAC OR 480 VAC, 22 KILOAMPERE AT 600 VAC STAR/347 VAC OR 600 VAC (UL/CSA/NOM)
Lugkit
AL400LA = 1-#1 AWG-600 kcmil
Mounting Hardware
I-Line Panel Mounted -- Does not require hardware
